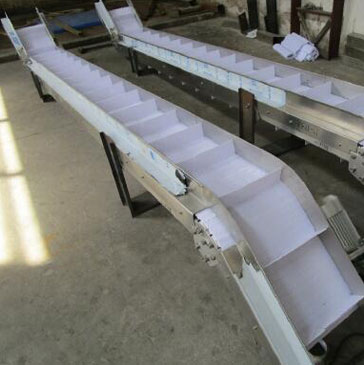

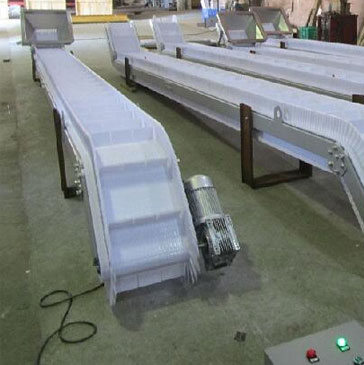

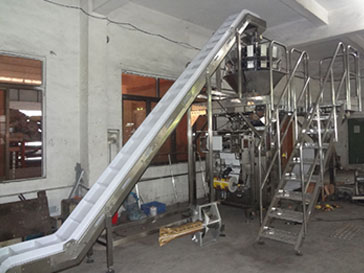

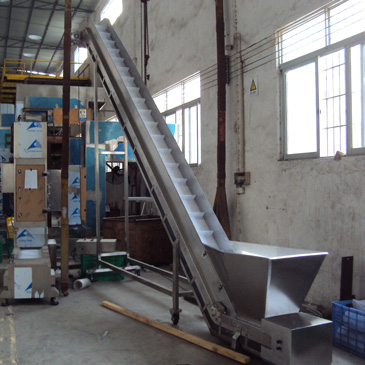

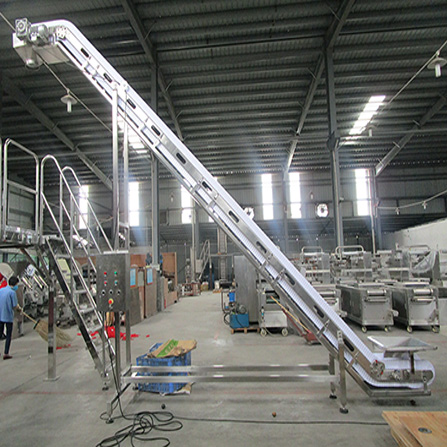

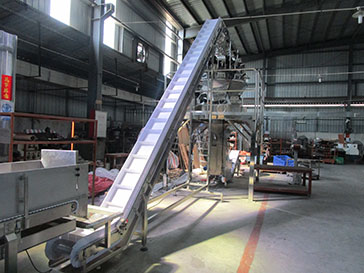

• Modular Belt Conveyor(Z Model)

Modular Belt Conveyor(Z Model)

Model Number:JOY-4-1

Power:1.1 KW
Conveying Capacity:17m-25m/min
Voltage:380 V
Weight:460 KG

Machine Features :
1、The conveyor is made of 304stainless steel sanitary construction and food grade polypropylene (PP )belt , with good appearance, not easily deformed, bear high and low temperature
2、The machine allows for controlled feeds at one or more locations and can easily interface with various types of feeding devices
3、The conveyors are easy installation and disassembly, the belt can be washed by water directly.

Optional parts :
(1) Frame material : 304stainless steel or mild steel

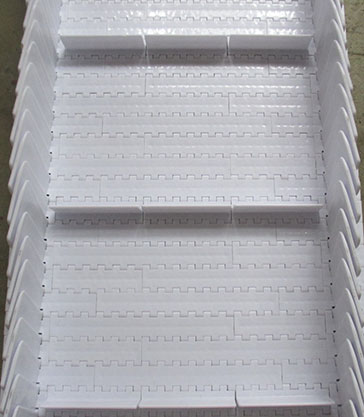

(2) food grade plastic belt (plain or dimpled)
(3) custom design available
Modular Belt Conveyor(Z Model) Technical Parameters
Model Number JOY-4-1
Overall belt width  400mm
Available belt width  300mm
side board height 100mm
Middle baffle height 75mm
Discharge height 3198mm
Infeed height 490mm
Conveying speed 17m-25m/min
Belt Character food grade plastic  belt
Voltage 3P  380V/ 220V,50Hz/60Hz
Packaging Size and Gross weight :Fumigated wooden case 5700(L)*810(W)*930mm(H)/ 460KG

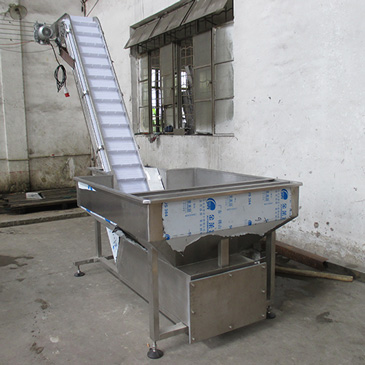

CUSTOM DESIGN

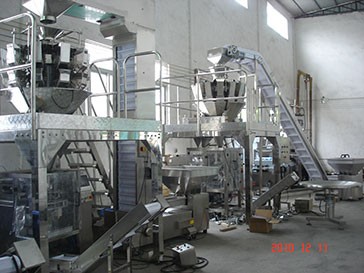

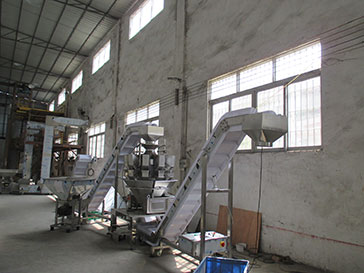

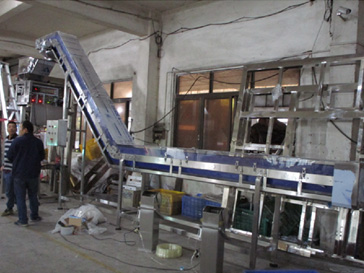

REFERENCE CASES

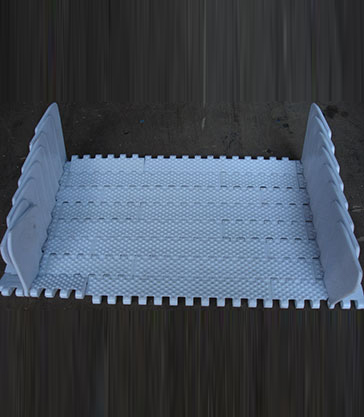

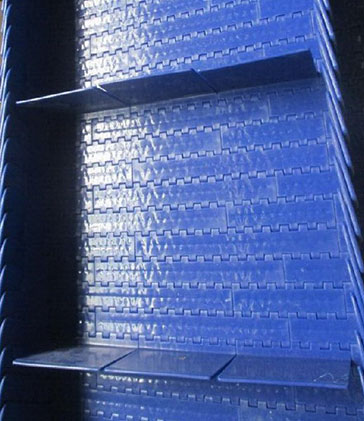

BELT TYPE
