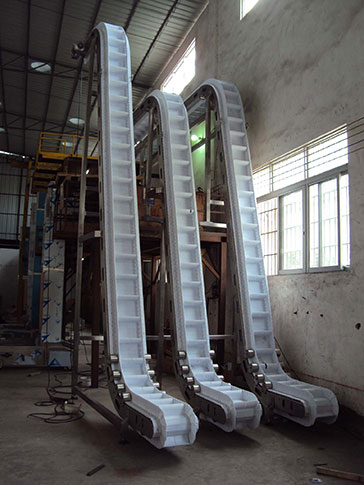

• Modular Belt Conveyor(S Model)

Modular Belt Conveyor(S Model)

Model Number:JOY-4-2

Power:1.5 KW
Conveying Capacity:20m-30m/min
Voltage:380 V
Weight:720 KG

Machine Features :
1、The conveyor is made of 304stainless steel sanitary construction and food grade polypropylene (PP )belt , with good appearance, not easily deformed, bear high and low temperature
2、The machine allows for controlled feeds at one or more locations and can easily interface with various types of feeding devices
3、The conveyors are easy installation and disassembly, the belt can be washed by water directly.
Optional parts :
(1) Frame material : 304stainless steel
(2) food grade plastic belt (plain or dimpled)
(3) custom design available
Modular Belt Conveyor(S Model) Technical Parameters
Model Number JOY-4-2
Overall belt width 602mm
Available belt width 450mm
Side board height 102mm
Middle baffle height 94mm
Discharge height 3520mm
Infeed height 750mm
Conveying speed 20m-30m/min
Belt character food grade plastic belt
Voltage 3P 380V/ 220V,50Hz/60Hz
Packaging Size and Gross weight:Fumigated wooden case 5800(L)*1000(W)*1700mm(H)/720KG
